Chladni Plates

This experiment is just for advanced students. Ernst Florens Friedrich Chladni (1756-1827) is considered to be the ‘father of acoustics’. He was fascinated by vibrating things like plates and gases, and his experiments resulted in two new musical instruments to be developed.

When Chladni first did these vibrating plate experiments (as shown in the video below), he used glass plates instead of metal. He was also one of the first to figure out how to calculate the speed of sound through a gas.

And it will completely blow your mind. Chladni patterns are formed with a metal plate covered in regular table salt is vibrated through different frequencies.

[am4show have=’p9;p43;’ guest_error=’Guest error message’ user_error=’User error message’ ]
Here’s what you need:

• metal plate or un-rimmed cookie sheet (thinner is better, but you’ll have to experiment with this)
• violin rosin
• bass fiddle bow
• two containers of salt

There are different ways of vibrating the plate – the easiest is by banging it, but this gives you only one frequency and usually makes a mess of the salt. You can alternatively bow the edge of the plate (clamped to a table) with a bass fiddle bow and specific points to get various frequencies… but you will need to practice to get this method to work.

These patterns can also be formed by setting the metal plate on a mechanical driver (like a speaker) controlled by a signal generator. (This way you don’t have to practice your bowing!).  The patterns you get this way are different from the bowing patterns, since you are vibrating it from the center instead of the edge.

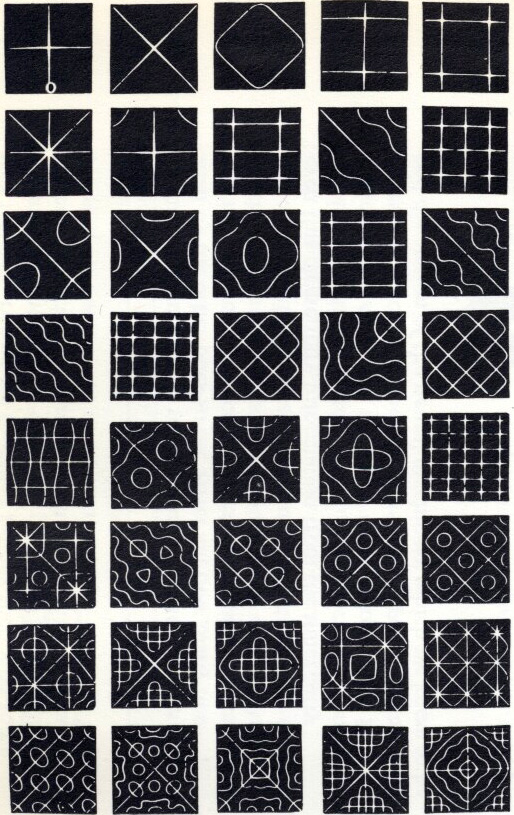

Image Source: UCLA Physics Dept.

These patterns were made by attaching the center of the plate firmly to a speaker.  In the video below, you’ll see how the different patterns were made in a live physics demo from the physics department at WFU:
