Berlese funnel

Unsurprisingly, often the most interesting critters found in soil are the hardest to find! They’re small, fast, and used to avoiding things that search for them. So, how do we find and study these tiny insects? With a Berlese Funnel (Also called the Tullgren funnel)!

[am4show have=’p8;p9;p28;p55;p86;p87;’ guest_error=’Guest error message’ user_error=’User error message’ ]

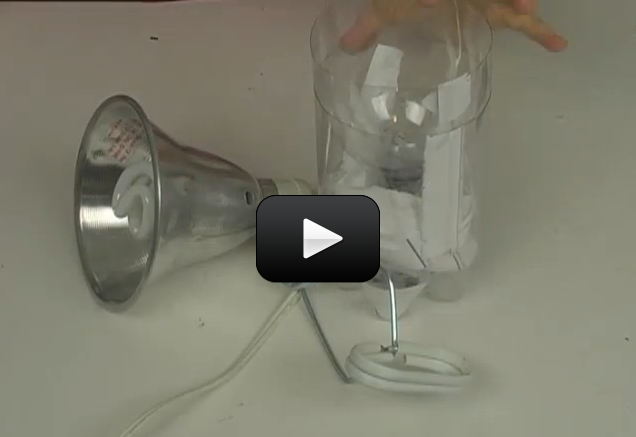

The funnel separates the insects from the soil with heat. A light bulb heats the soil at one end of a funnel and causes the insects to migrate, through mesh, to a preservative liquid at the other end of the funnel. Originally Antonio Berlese used a hot water bottle to provide the heat. Later, Albert Tullgren modified the funnel to work with a light bulb. Thus, we now call it the Berlese Funnel, the Tullgren Funnel, or the Berlese-Tullgren Funnel.

Download Student Worksheet & Exercises

An ultraviolet lamp used to attract night flying insects. The simplest set up is to hang a white sheet on a line and hang a portable black light on one side of the sheet. Insects will land on the sheet and can be tallied, identified or collected.

To make a larger, more permanent model, here’s what you need:

• 1 gallon tractor funnel.
• Clothespins.
• A light fixture that fits on top of the funnel and has a reflective interior.
• A bucket that has a smaller diameter than the top of the funnel. The funnel needs to be suspended from the bucket so the insects can fall into the jar.
• A clean jam-jar.
• Rubbing alcohol.
• ¼ inch wire mesh.
• Light bulb. The wattage has to be high enough to heat the soil, but not so high that it will light the funnel on fire. Best to do it by trial and error with lots of supervision.
• Soil. The best will be from a compost pile.

Here’s how you make the funnel:

1. Cut a large hole in the side of the bucket. This will allow you to retrieve the jar without disassembling the apparatus. Naturally, the hole should be larger than the jar.
2. Fit the wire mesh so that it covers the bottom third of the funnel.
3. Fit the funnel on top of the bucket.
4. Fit the light fixture (with the light bulb in it) on top of the funnel with the clothespin.
5.  Place the jar underneath the funnel (with or without the rubbing alcohol depending on if you want the specimens dead or alive).

How to use the funnel: Simply turn on the light and wait. Check the vial every fifteen minutes or so for an hour. After you have finished remember to turn off the light! Also, remember that some of the specimens may be very small and best observed under a microscope. For the best results do it in the morning or on a cold day.

How the funnel works:  Figure 1 shows the funnel in action. The light (G) creates heat. The insects in the soil don’t like heat, so they move from the soil (D) through the funnel (C) into the jar (B). The jar is filled with rubbing alcohol (A) preserves the specimens. The wire (not shown in the figure) keeps most of the soil from falling into the jar.

Troubleshooting: What if there still aren’t any bugs after an hour? If this happens, don’t panic. Ask yourself these questions:

• Is the light strong enough? If the light is not strong enough (i.e. generating enough heat), then the soil will not get hot enough to push the insects into the jar. The funnel works by creating a gradient of heat which the bugs move down into the jar. If the light isn’t creating that gradient, no critters will feel like moving.
• Is it hot today? If the sun is out and making everything hot, then the light will not make enough of a difference in heat—there will not be a heat gradient to move down. If so, don’t worry; just try again the next morning.
• Is there a problem with the funnel? Is the nozzle of the funnel too far from the mouth of the jar? Make sure that the specimens are falling into the jar and not around it. Is the mesh wire too fine? You want mesh that will keep most of the soil in the funnel, but not so fine that it will stop the bugs from getting through.
• Lastly, are there any bugs in the soil? Not just any dirt will do for this project. You need soil rich with life! The best place to find this type of soil is near/in a compost pile (after it has become soil).

Exercises

1. Why are some insects difficult to find in soil?
2.  Why does the Berlese Funnel work to find insects?
3.  What if the insects do not respond to the heat lamp in your experiment?
4.  What types of insects were you able to find using the Funnel?
